Needleman-Wunsch Algorithm: My Research Approach
My research focused on improving and optimizing the Needleman-Wunsch algorithm, a fundamental method in bioinformatics used for the global alignment of DNA, RNA, and protein sequences. Originally introduced by Saul B. Needleman and Christian D. Wunsch in 1970, this algorithm laid the foundation for modern sequence comparison techniques, which sparked my desire to build on this remarkable discovery, still used today.
One of my biggest concerns from the beginning of the project was the website's performance. I created a connection to an external server to generate analytics sharing code. I also used a view control in the generated table of entries.
Introduction to My Development Process
The goal of my Needleman-Wunsch tool was to align global sequences efficiently, interactively to extract the best of my current capacity and that someone somewhere in the world could use my tools to succeed in their research and bring advances to our society as a whole.
Algorithm Development Steps
1. Designing the Scoring Matrix
My approach began with constructing a scoring matrix to represent partial alignments of subsequences. I initialized the matrix with penalties tailored for matches, mismatches, and gaps, optimizing the structure for computational efficiency.
2. Iterative Matrix Population
I developed an iterative process to fill the matrix, calculating each cell’s value as the maximum score from possible moves (based on adjacent cells) while factoring in penalties for matches, mismatches, or gaps. This step was refined to reduce computational overhead.
3. Traceback to Find the Optimal Alignment
After completing the matrix, I implemented a traceback mechanism to identify the optimal alignment path, starting from the final cell and moving back to the first, guided by the highest cumulative scores.
4. Constructing the Final Alignment
My final step involved mapping the sequences’ characters along the optimal path, clearly delineating matches, mismatches, and gaps to produce a precise alignment output.
Scores and Penalties
Match A positive score assigned when corresponding sequence characters are identical, rewarding alignment accuracy.
Mismatch A penalty applied when characters differ, discouraging incorrect alignments.
Gap A penalty for inserting a space in one sequence, balancing alignment flexibility and accuracy.
Applications of My Work
My enhancements to the Needleman-Wunsch algorithm support a range of bioinformatics applications, including:
- Comparing DNA, RNA, and protein sequences for genetic analysis
- Investigating homology and evolutionary relationships
- Analyzing gene and protein similarities
Conclusion
My research and development of the Needleman-Wunsch algorithm have produced a robust tool for sequence analysis, advancing our ability to compare and understand biological sequences. This work builds on the algorithm’s 1970s origins, ensuring it remains a vital component of modern bioinformatics and computational biology.
View Detailed Analysis
In the 'View Detailed Analysis' section, my tool offers multiple visual representations of the score matrix, featuring arrows, colors, and points. Each visualization includes sub-configurations for customized display and analysis.
1. Direction-Based Visualization
The score matrix shows the values calculated during algorithm execution. Colors indicate operation types — match, mismatch, or gap — while small letters in each cell (D, U, L) denote traceback directions: diagonal, up, or left.
2. Heatmap Representation
The heatmap visualization highlights numerical intensity: warmer tones (red) mark higher scores, while cooler tones (blue) correspond to lower ones, enabling quick pattern recognition.
3. Arrow-Based Traceback
Arrows (↖, ↑, ←) indicate the traceback directions, visually guiding the path used to construct the final sequence alignment in an intuitive and educational way.
4. Rainbow Spectrum Visualization
A vibrant rainbow color scale represents matrix values, making it easier to spot patterns, high-value regions, and performance clusters across the alignment grid.
5. Value-Based Gradient
A vibrant rainbow color scale represents matrix values, making it easier to spot patterns, high-value regions, and performance clusters across the alignment grid.
6. Interactive Cell Highlighting
Interactive visualization allows users to click cells and apply highlight modes to uncover structural patterns and gain deeper insights into the alignment matrix dynamics.
Finally, the tool features an Interactive Alignment Visualization that compares sequences in a dynamic, engaging manner. An automatic composition is also generated to summarize analytical insights and enhance usability.

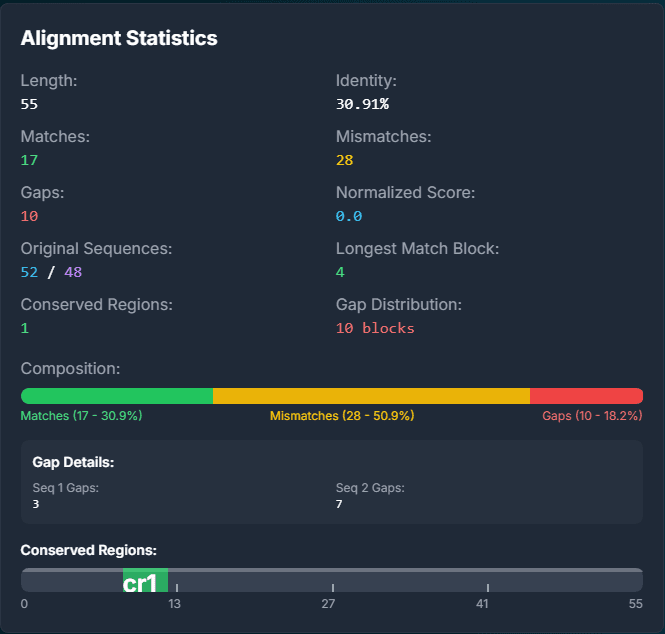

Visualization of statistical data related to sequence alignments, showcasing metrics such as alignment scores, identity percentages, or gap distributions.

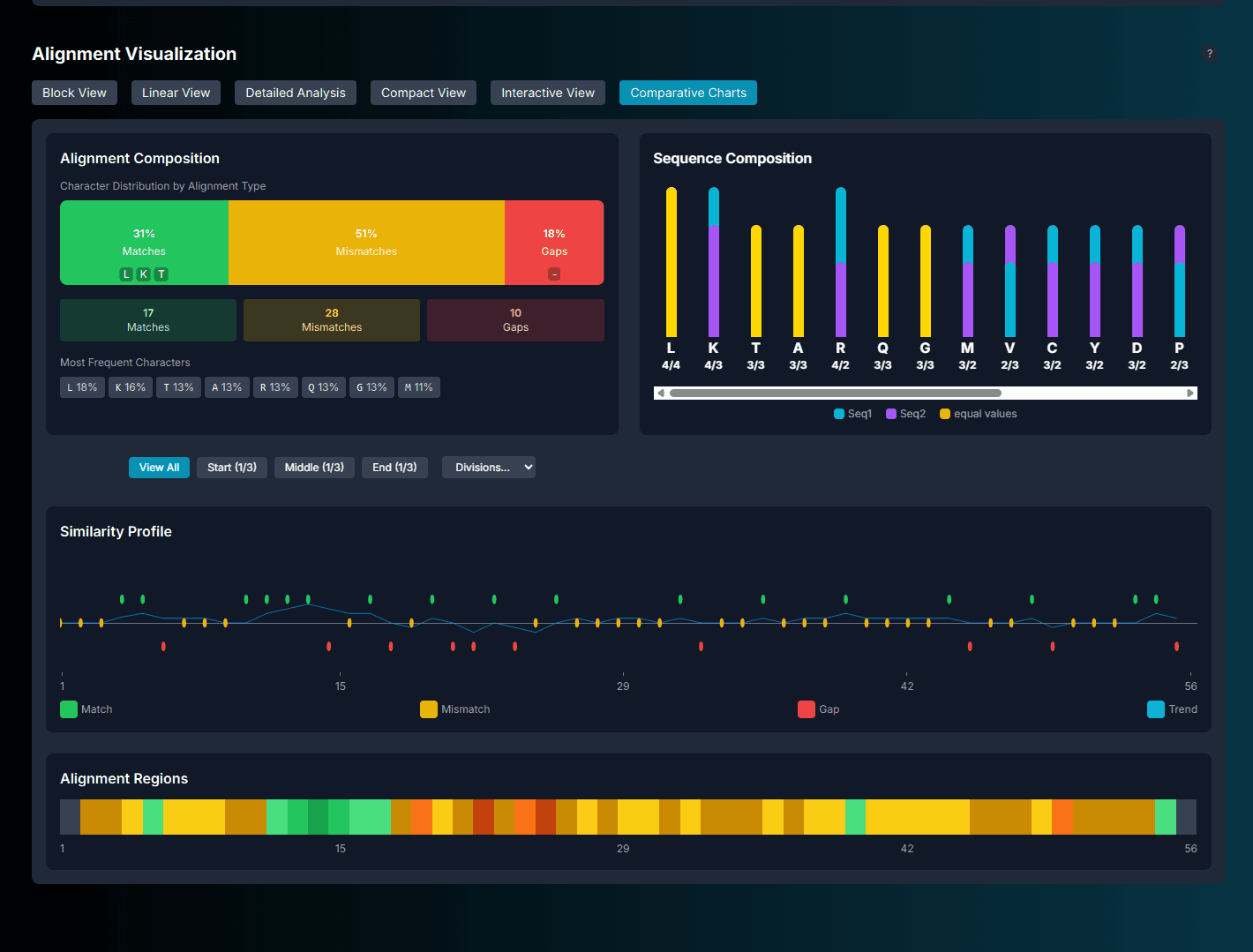

Graphical representation of sequence alignments, illustrating the relationships and similarities between biological sequences, such as proteins or nucleic acids.
